Mechanical Anchor PR
Europofix wide range of products allows an easy adjustment in depth, between the wall and the fixing axis.
This regulation is achieved through a rivet bolt which is stuck to the anchor fixing system, which in turn rotates theadjustableartm, through wrench, either moving closest or further away from the stone cladding.

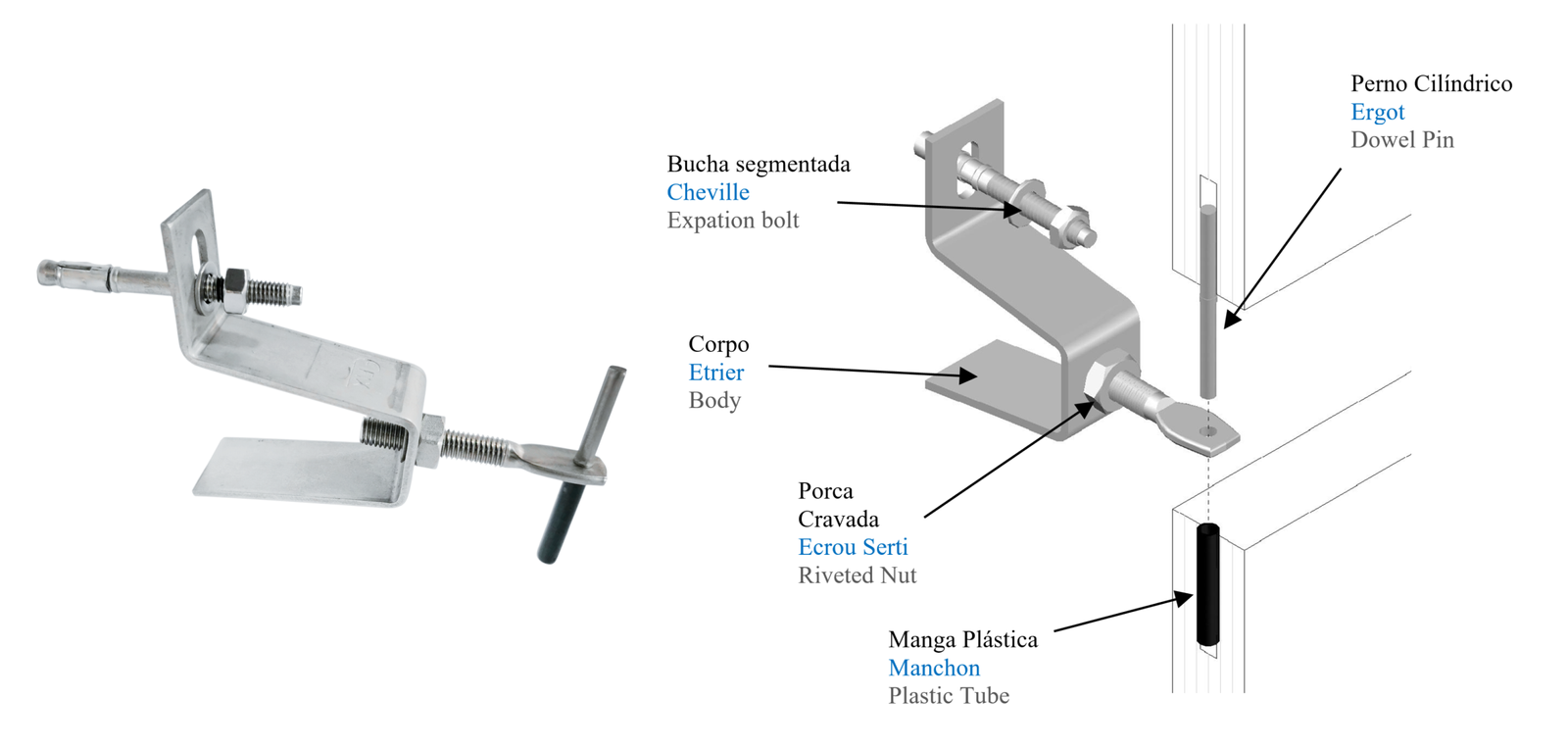

Anchor fixing system for small and medium loads.
-30x3mm section
– Adjustable arm
-Rivet bolt
-Stud with dowel pin and plastic tube
Material: Stainless steel 304 or 316 under quote.
Instalation

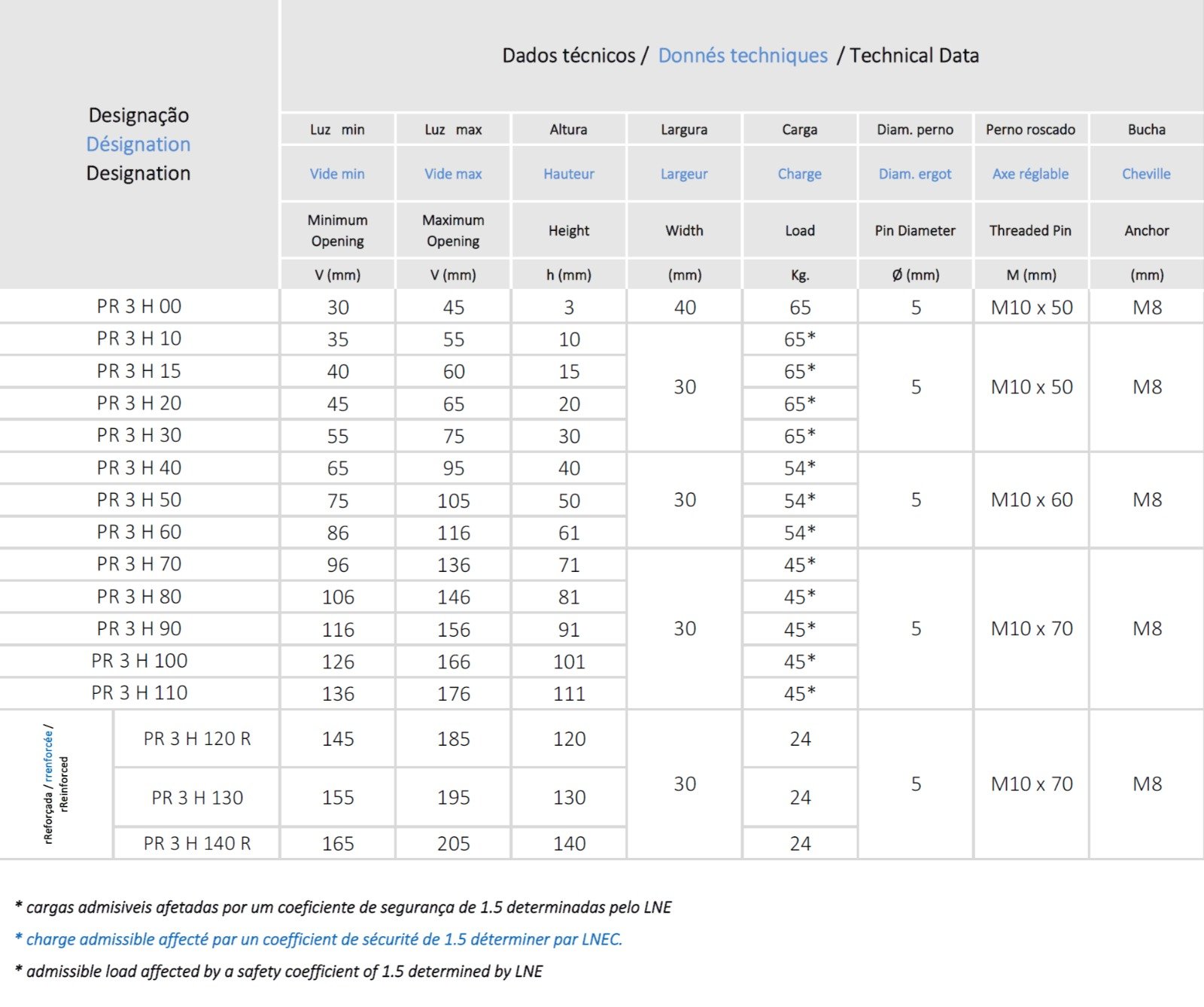

Technical Sheet
